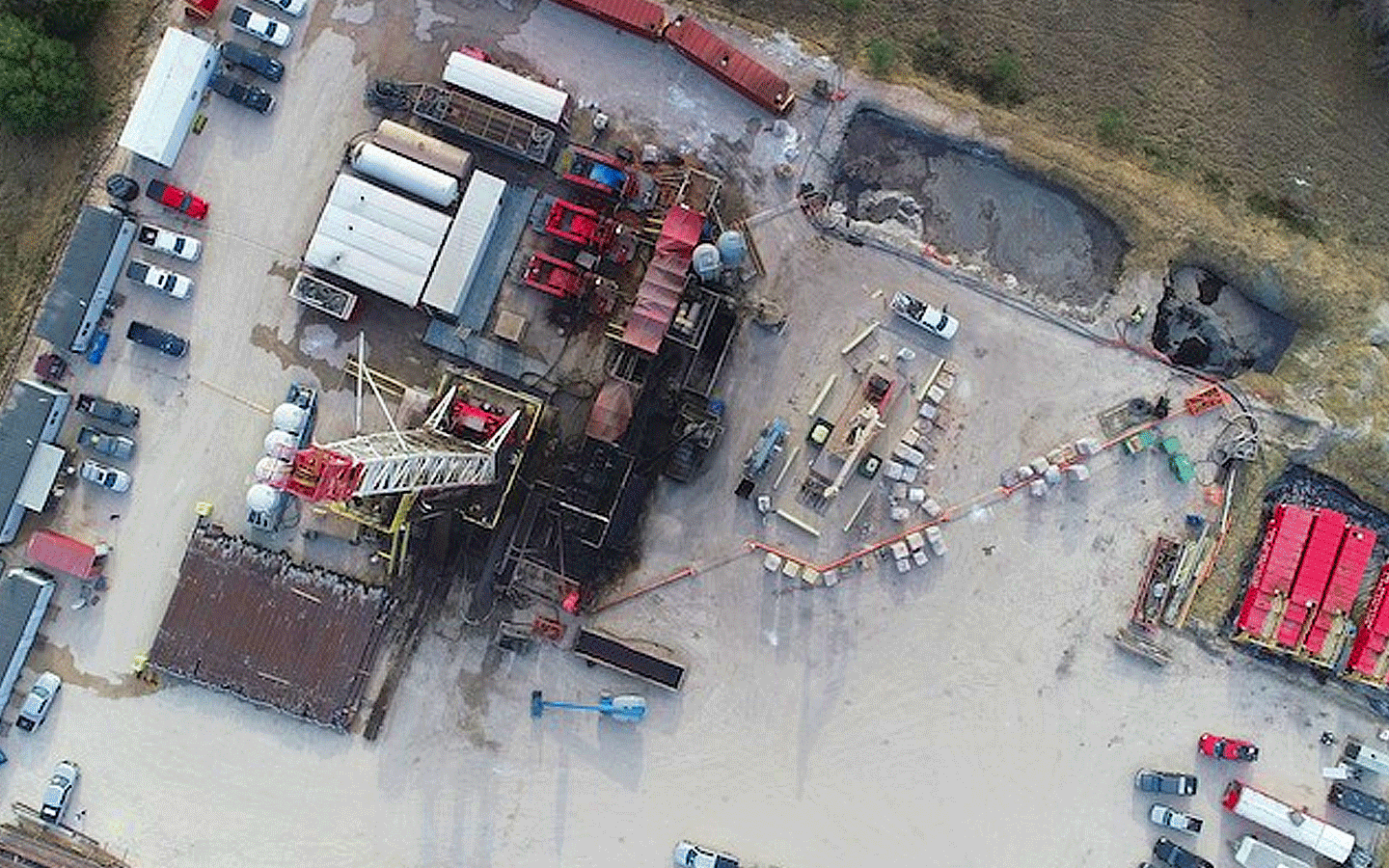

Drilling Rig 11
Rig 11
1,500 HP ELECTRIC SCR
142′-768,000# Static Hook Load Triple
Three F-1600 HP 7.5″ X 12″ Triplex
Hydrill 13 5/8″ 10,000 psi double rams
DRAWWORKS
Davis 1500-E (National 110 UE copy) with 2 – GE 752 DC Motors
Grooved for 1 3/8” Drill Line
WPT 235 Auxiliary Electric Brake
DERRICK
Superior 142′ High, Cantilever Mast
768,000# Static Hook Load Capacity
SUBSTRUCTURE
Superior with 768,000# casing capacity and 500,000 # setback capacity
21’ Rotary Beam Clearance
25′ High Box on Box Type
POWER SOURCE
(3) – Caterpillar 3512C’s w/ 1365 KW generators
Ross Hill type 3 x 4 bay SCR House
PUMPS
3-F-1600 Type 7 ½” x 12″ Triplex Powered by 2-752 DC Motors each – 7500 psi working system
Low-Pressure Mud Mixing System with Two 6” x 5” x 11” Centrifugal Pumps w/40 HP Electric Motors
DRILL STRING
Drill Pipe – 4½” Grade S-135 / G-105 16.60, NC46 X-Hole with Hardband
Drill Collars – 6” – 6½” OD NC44 with Hardband
8″ – 8″ OD 5″H90
Pipe Spinner: J29 Varco Chain Type
PREVENTERS
1- 13 5/8” Hydril type Annular wp 5000 psi
1- Schaffer style 13 5/8” 10,000 psi Double Rams
1-Shaffer style 13 5/8” 10,000 psi Single Ram
1- 4 1/16” manual valve, 1- 4” HCR valve, 2- 2 1/16” valves and 1- 2 1/16” check valve all 10,000 psi
1- CAD Type M Series, 6 Station Closing Unit with 20 – 11 Gallon Bottles and with 150 Gallon Reserve with remote Choke Manifold-10,000 psi 4 1/16″ x 3″ with Two Adjustable 3 1/16’’Choke
OTHER EQUIPMENT
350 ton Warrior Hydraulic top drive w/7500 psi circ rating
Columbia In-Sub Walking System with HPU
Crown Block – Superior – (7) 48″ Sheaves,
Traveling Block – National Oilwell type 500 Ton
Weight Indicator – Type EB
Rotary – 27½” x 53¼”
Fuel Tank with Lubester – 15,000 Gallon
50 bbl trip tank
Wireline Unit – .092 Line
Mud Tanks – Two Tank System, Round Bottom, 750 BBL with 5 Electric Agitators Plus 105 BBL Slugging Tank
Shakers – 3 x Derrick 503 Type Linear Motion
Desander – Derrick, (2) 12″ Cones with Southwest 6” x 5” x 11” Centrifugal Pump w/40 HP Electric Motor
Desilter – Derrick, (12) 4″ Cones with Southwest 6” x 5” x 11” Centrifugal Pump w/40 HP Electric Motor
Degasser – Derrick Drilco type
OFI Basic Services
498 Barrel Drill Water Tank
